Product Features
What's In The Box
Here are the items included with your machine.
Technical Specifications
GTIN
850004757000
Product Features

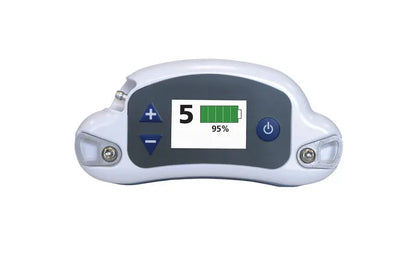

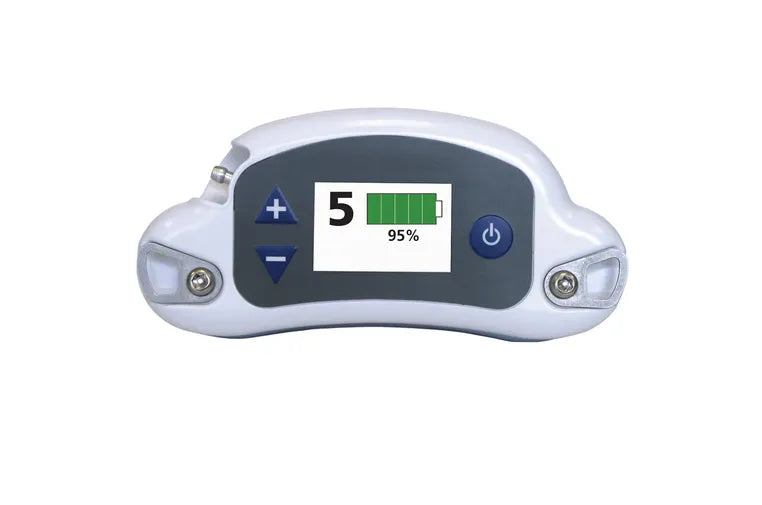

Features UltraSense technology to automatically calibrate oxygen level to your needs Five pulse setting choices deliver up to 1050 mL/min of oxygen Easy-to-read user Interface Wearable and lightweight at less than 5 pounds Ergonomic, curved design FAA Approved for onboard/in-flight usage Fully functional on AC or DC power CAIREView Telehealth Technology
Manufacturer
CAIRE
Dimensions
8 Cell Battery: 7.3 inches Wide x 3.1 inches Deep x 10 inches High 16 Cell Battery: 7.3 inches Wide x 3.1 inches Deep x 11 inches High
Product Weight
8 Cell Battery: 5 pounds 16 Cell Battery: 6 pounds
FAA Approved
Yes
Warranty
Three-Year Warranty on the Unit, Three Warranty on Sieve Beds, One-Year Warranty on Battery and Accessories
Alarms / Alerts
Start Up, No Breath Detected, Low Battery Shut Down, Low Battery Warning, Warm-Up, Low Concentration, Battery Over Temp, High Temperature, Low Temperature, High Pressure, Breathing Rate Exceeded, Fan Failure, Low Pressure
Battery Charging Time
8 Cell Battery: About 3.5 hours with the use of AC or DC power 16 Cell Battery: About 6 hours with the use of AC or DC power
Battery Duration
Setting of 1 8 Cell Battery: 8 hours average 16 Cell Battery: 16 hour average Setting of 2 8 Cell Battery: 4 hours average 16 Cell Battery: 8 hour average Setting of 3 8 Cell Battery: 3 hours average 16 Cell Battery: 6 hour average Setting of 4 8 Cell Battery: 2.25 hours average 16 Cell Battery: 4.5 hour average Setting of 5 8 Cell Battery: 2 hours average 16 Cell Battery: 4 hour average
Flow Settings
Pulse Dose: Settings from 1 - 5 1 = 210 mL/min 2 = 420 mL/min 3 = 630 mL/min 4 = 840 mL/min 5 = 1050 mL/min
Maximum Oxygen Output
1050 mL/min
Noise Level
Around 39 decibels at a setting of 2 (As loud as a refrigerator humming)
Outlet Pressure
<30 PSI
Oxygen Purity
90% (+5.5% / -3%)
Power Consumption
AC Power: 100–240 VAC, 50-60Hz DC Power: 11–18 VDC (10 max amp)
Operating Ranges, Intended for Use
Temperature: 41 to 104 Fahrenheit (5 to 40 Celsius) Altitude: -1250 to 10,000 feet (-381 to 3048 m) Humidity: 15 to 95% relative humidity (non-condensing)
Storage Ranges, Intended for Storage
Temperature: -13 to 158 Fahrenheit (-25 to 70 Celsius) Altitude: Up to 10,000 feet (3048 m) Humidity: Up to 95%, non condensing

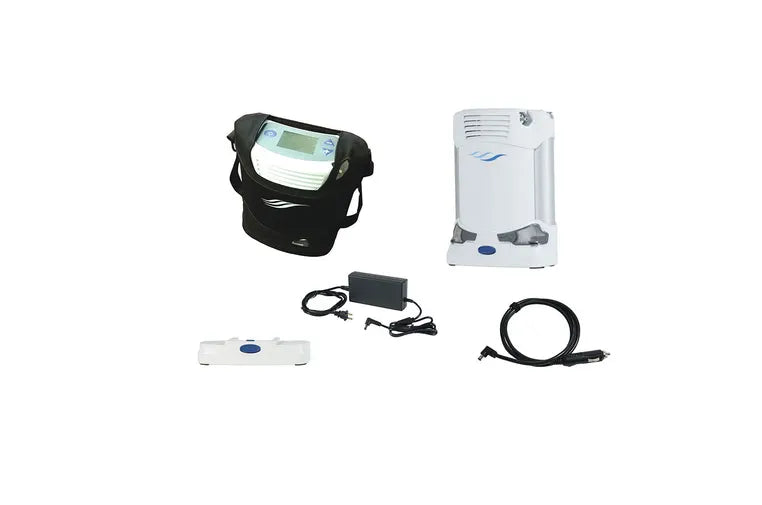

Items in the Box
Includes the Freestyle Comfort unit (AS200-1), small 8-cell lithium ion battery (BT034-1), carry bag (MS396-1), shoulder strap (MS397-1), power supply with AC input cable (4997-SEQ), DC (vehicle) power cord (CD041-1), cannula and user’s manual.
