RHYTYLE

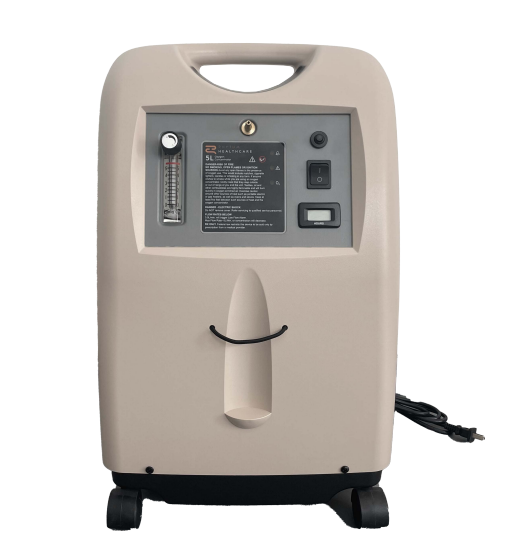

LM5CA Stationary Oxygen Concentrator

LM5CA Stationary Oxygen Concentrator

Low stock: 3 left

The Oxygen Concentrator is intended for individual use as an oxygen supplement
device in a home or care facility. The patient is the intended operator. The
concentrator is an electronically-operated device that separates oxygen from the
ambient air. It provides a high concentration of oxygen directly to you through a
nasal cannula or other methods. Clinical studies have documented that oxygen
concentrators are therapeutically equivalent to other types of oxygen delivery
systems.
This equipment takes 120V ~ power source as power source, air as raw material,
adopts high quality and high efficiency molecular sieve, and through PSA method
at room temperature, produces high purity oxygen conforming to medical
standards, thus achieving sustainable and uninterrupted oxygen supply.



Item #LM5CA

Regular price $1,500.00
Regular price Sale price $1,500.00
Sale Sold out
  • 30-Day Risk Free
  • 2 Year Warranty
  • Free Shiping
  • Unlimited Support
View full details

Product - Technical Specs

Power supply: AC120V, 60Hz; Current:3.5A; Power: 450VA
Sound level: ≤ 50dB (A) Acoustic power level: 58.5dB (A)
Maximum recommended flow: 5L/min
Flow Range at Outlet Pressure of 0 kPa: 0.5~5L/min
Oxygen Concentration: When 0.5~5L/min ,93%±3% (after turning on 30 minutes)
Output Pressure: 38kPa±5kPa
Release Pressure during machine operation: 250kPa±50kPa
Weight: 35.5lbs
Dimension: 13”×10.3”×21.3” (330×260×540mm
Altitude: The oxygen concentration will not reduce at altitudes up to 6,000ft / 1828 meters. At altitudes between 6,000ft / 1828 meters and 13,100ft / 4,000 meters, the efficiency will decrease to less than 90%.
Safety System: ① Current overload or line surge auto-shutdown. ② High temperature compressor auto-shutdown. ③ High pressure alarm and auto-shutdown. ④ Low pressure alarm and auto-shutdown. ⑤ Low oxygen concentration alarm.
Minimum Operating Time: 3 30 minutes
Electric Classification: Class Ⅱ equipment, Type BF applied part (Nasal oxygen cannula)
Mode of Operation: Continuous duty
